Price range: $339.00 through $599.00

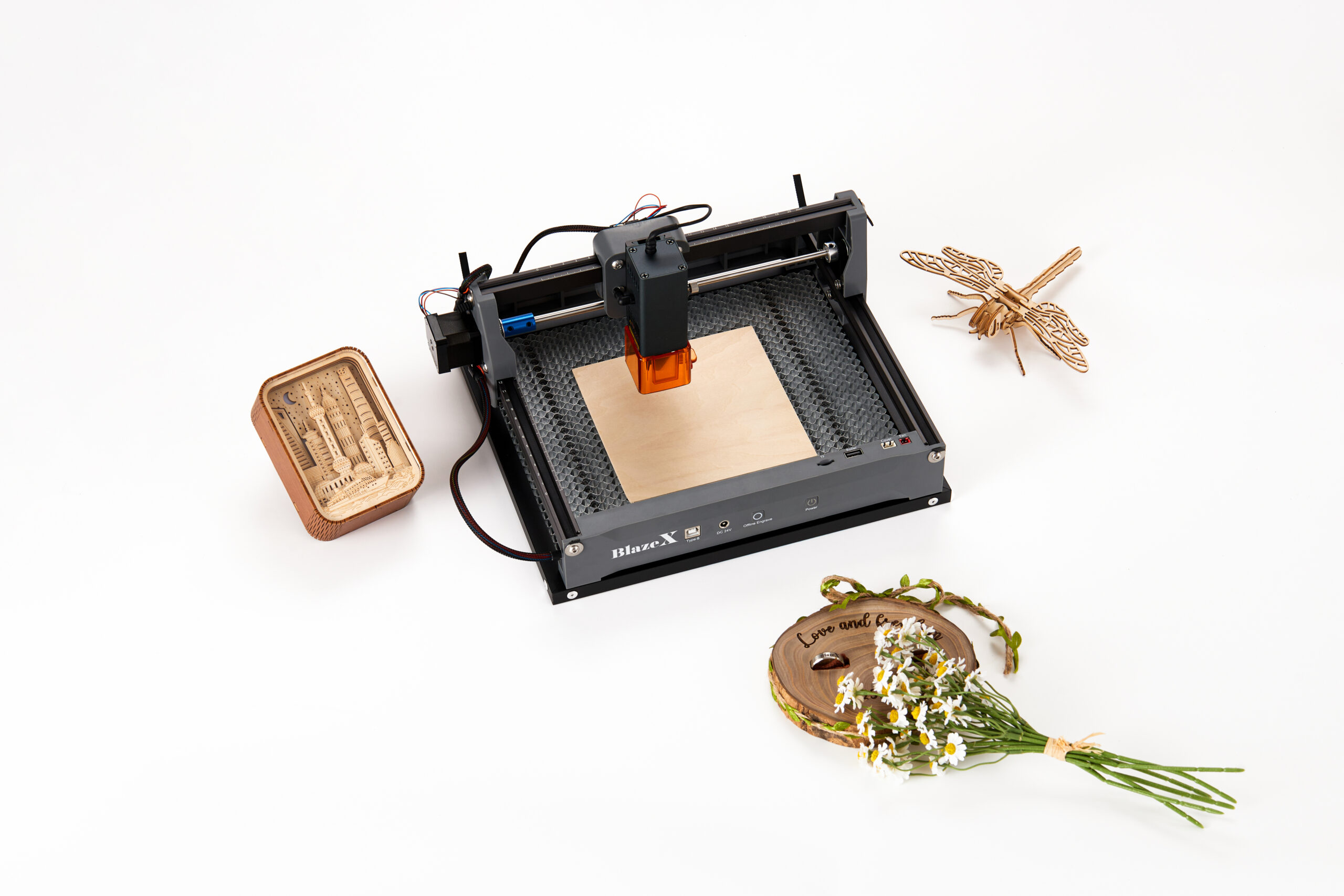

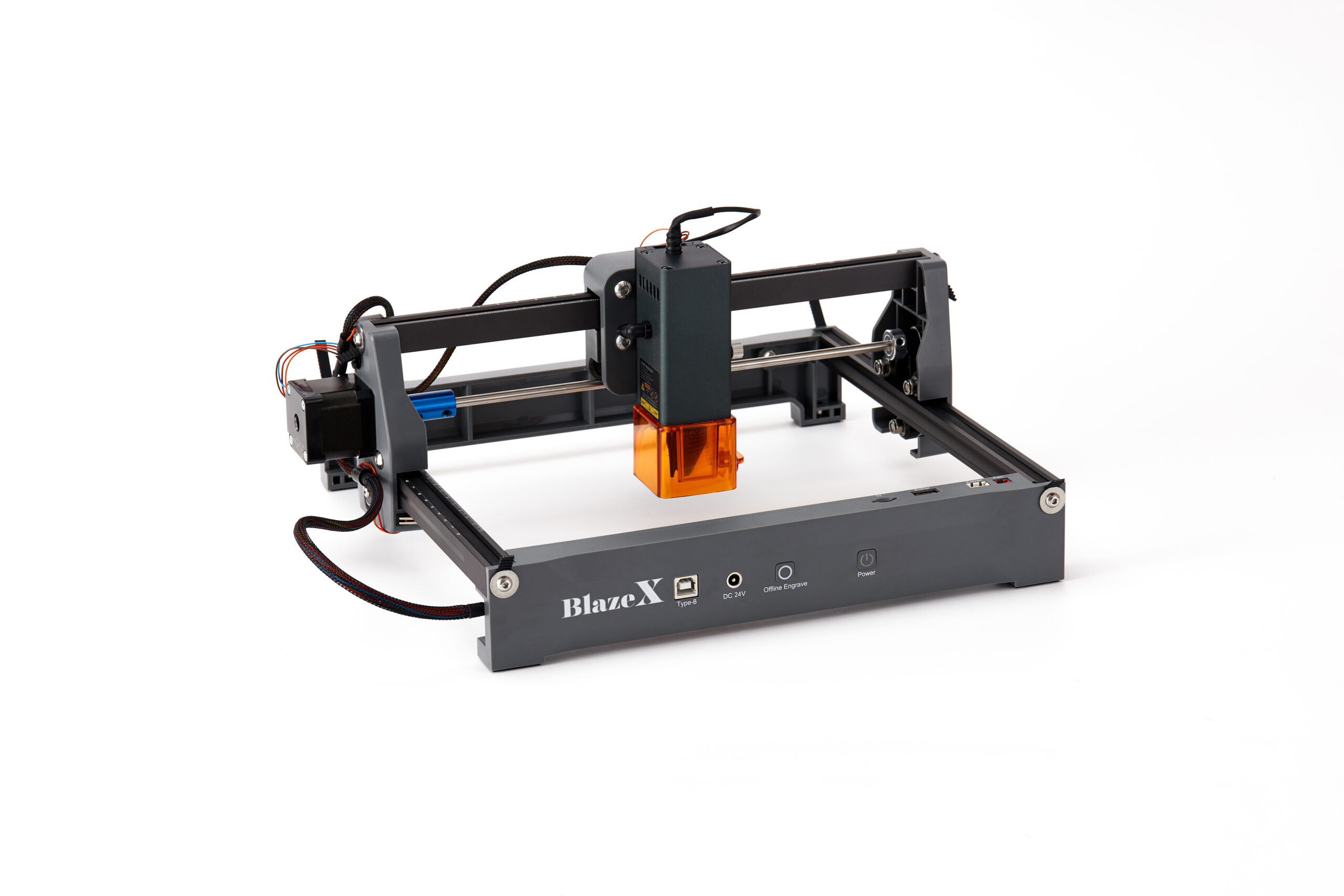

Products Brand/Model: BlazeX M3 Laser Engraving Machine

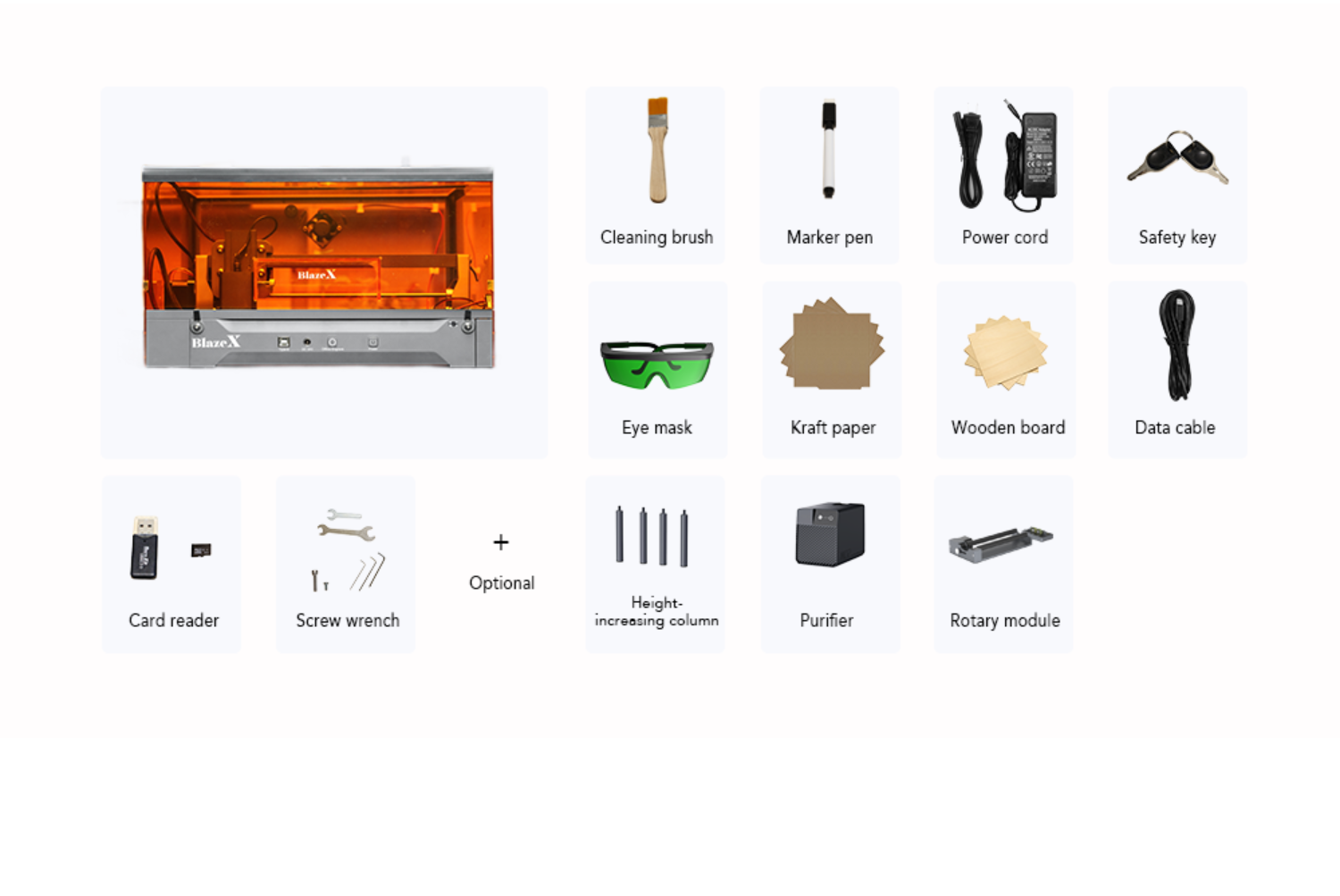

Optional Accessories: Honeycomb Panel, Heightening Column, Rotary Fixture Clamp, Air Purifier, Air Pump.

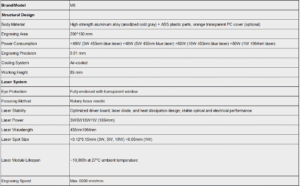

| Structural Design | |
|---|---|
| Body Material | High-strength aluminum alloy (anodized cold gray) + ABS plastic parts + optional orange transparent acrylic enclosure |
| Engraving Area | 200*150 mm |
| Power Consumption | <48W (3W 455nm blue laser)/ <48W (5W 455nm blue laser) / <60W (10W 455nm blue laser) / <60W (1W 1064nm laser) |
| Engraving Precision | 0.01 mm |
| Cooling System | Air-cooled |
| Working Height | 65 mm |
| Laser System | |
|---|---|
| Eye Protection | Fully enclosed with transparent window |
| Focusing Method | Rotary focus needle |
| Laser Stability | Optimized driver board / laser diode and heat dissipation design for stable optical/electrical performance |

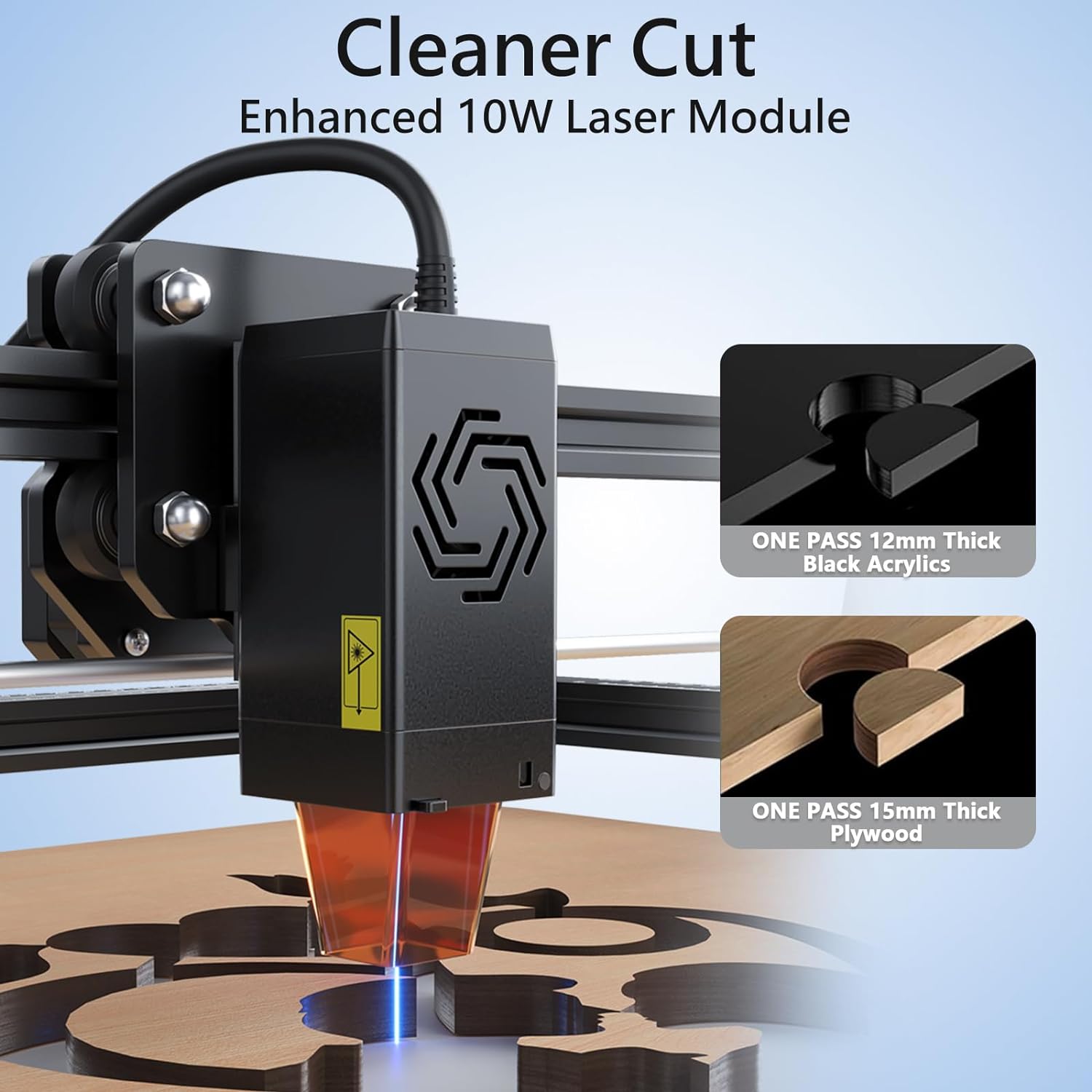

| Laser Power | 3W / 5W / 10W / 1064nm 1W (optional) |
| Laser Wavelength | 455nm / 1064nm (optional) |

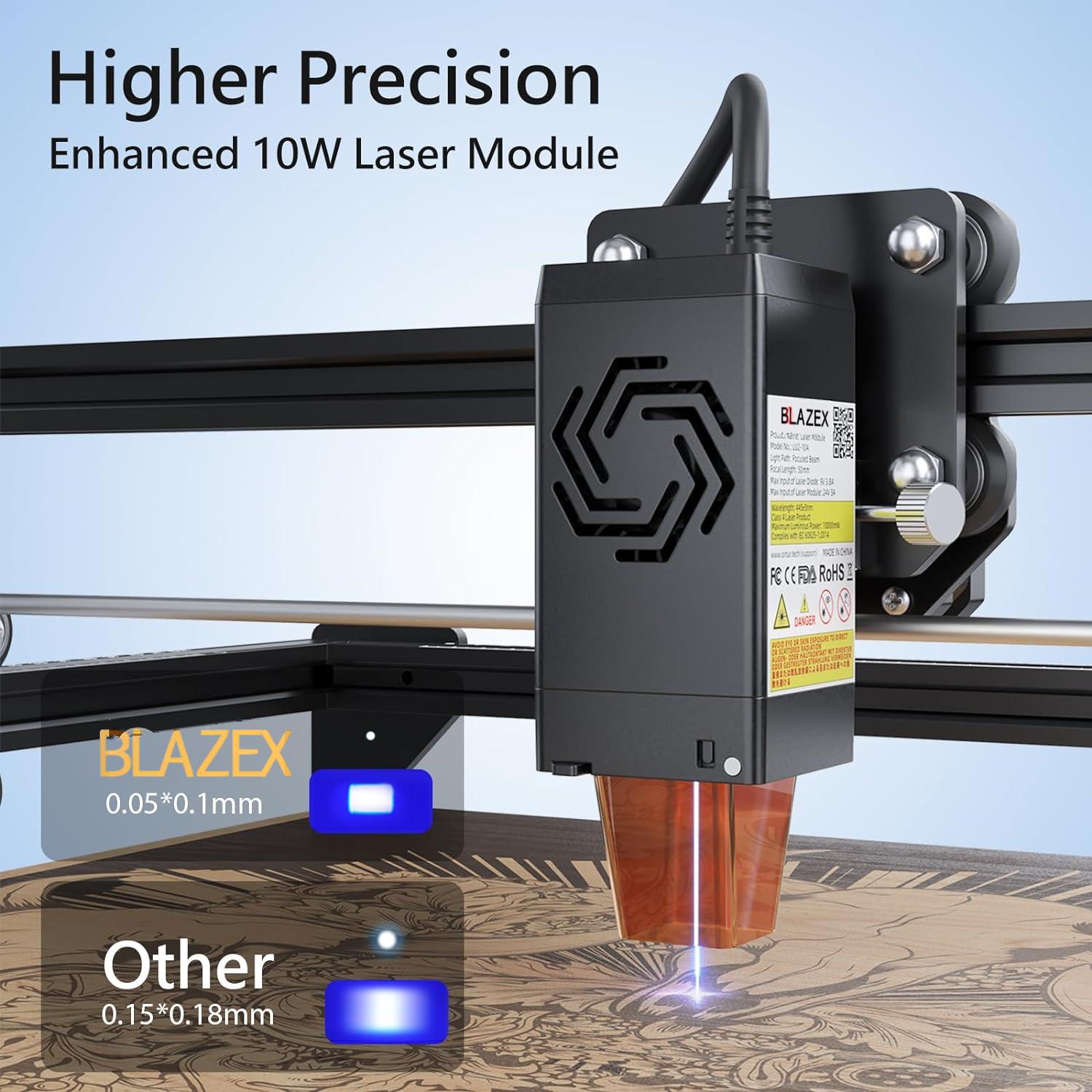

| Laser Spot Size | <0.12*0.15mm (3W/5W/10W)；<0.05mm (1W) |
| Laser Module Lifespan | About 10000 hours at 27°C ambient temperature |
| Engraving Speed | Max: 5000 mm/min |
| Motherboard & Software | |
|---|---|
| Mainboard | Custom BlazeX board (FR4 double-sided fiberglass) |
| Data Transfer | USB-to-serial wired transmission / WiFi wireless transmission |
| Software | CutLabX (PC + mobile app) / GRBL (LightBurn + LaserGrbl for PC) |
| Supported Formats | CutLabX: JPEG/BMP/JPG/PNG/CUTLABX(image)；DXF(vector)；GRBL: NC/BMP/JPG/PNG/DXF |
| OS Compatibility | CutLabX: Windows/macOS/Android/iOS；LightBurn: Windows/macOS；LaserGRBL: Windows |
Our package contains a TF card.
Simply insert the TF card, and then you can use it flexibly without needing to connect to a computer.
Loosen the laser module, slide the module block and tighten the screwsuntil its protective cover touches the positioning point.
Convenient multifunctional buttons
The engraving area of our engraving machines is larger than most engraving machines, so you can develop your creativity to the maximum extent.
The laser cutting machine will stop running if tilted at an abnormal angle. After entering the protection state, the machine must be restarted to restore normal functions.
Laser protection cover can effectively filter 97% of ultraviolet rays.

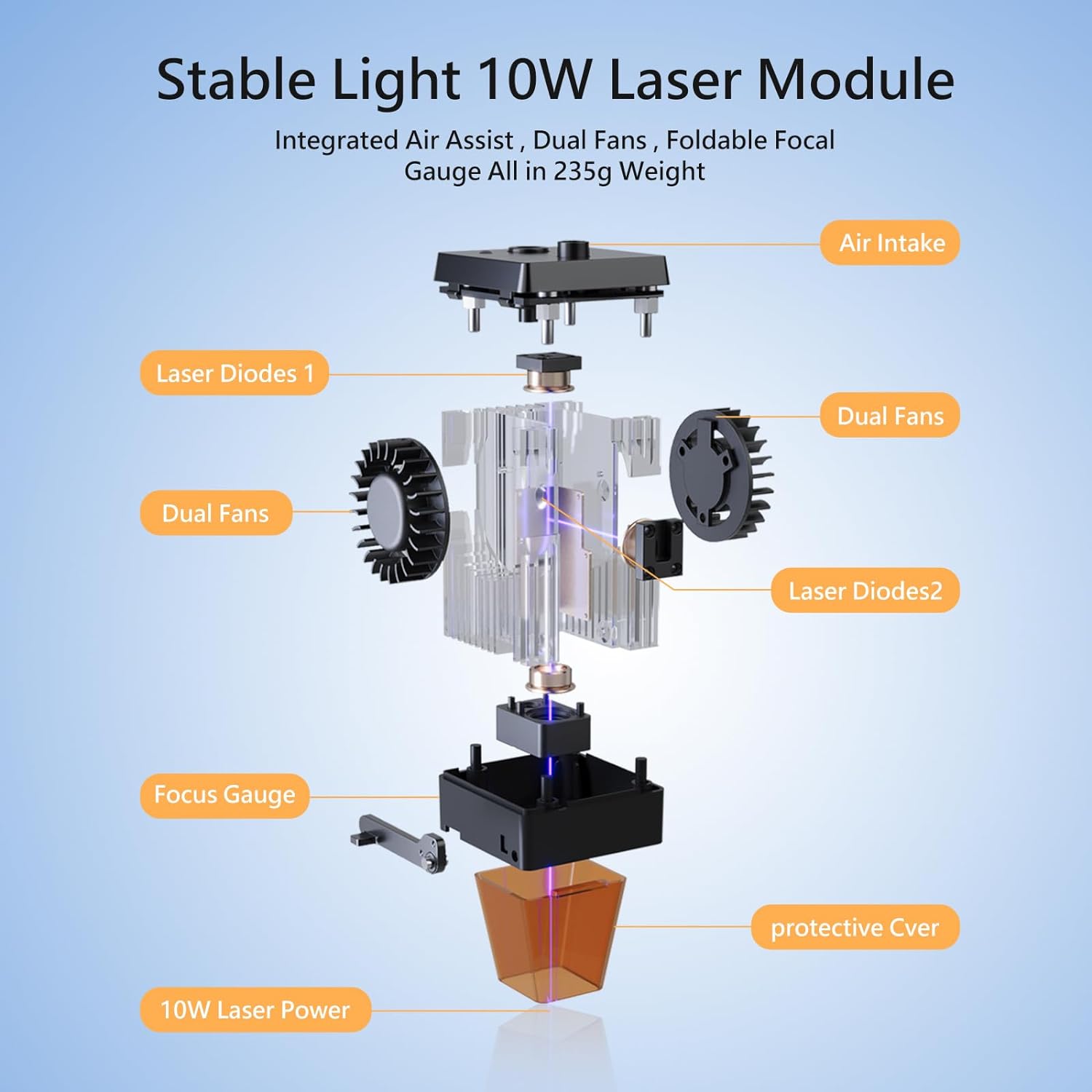

The dual-fan structure has a better heat dissipation effect and can effectively protect the laser module and extend its service life.
When using this BlazeX M3 laser engraving machine for cutting, it is recommended to equip it with an air pump for cutting. When used in combination, they can help cut and make the cutting edge less black and smoother.
