$579.00

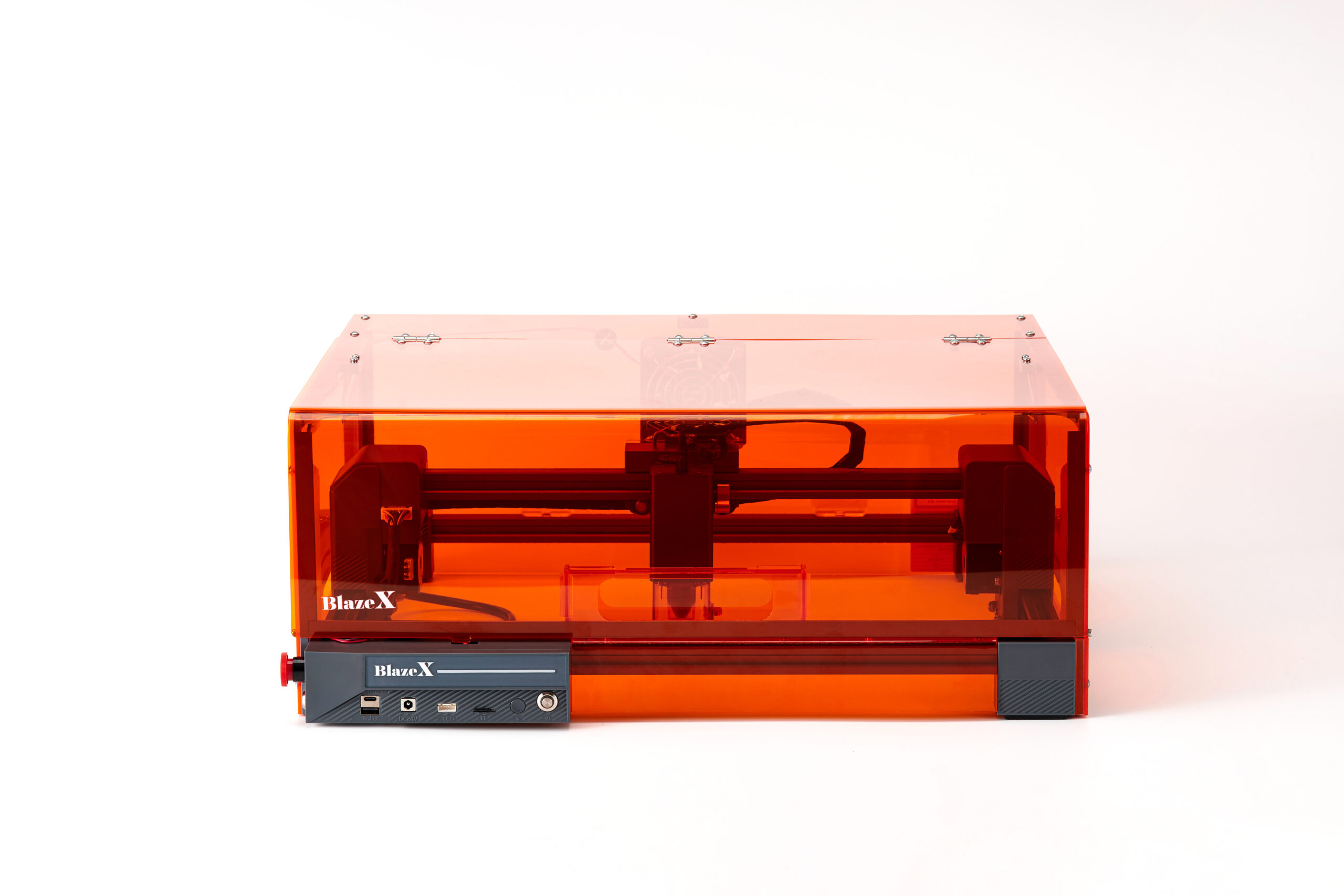

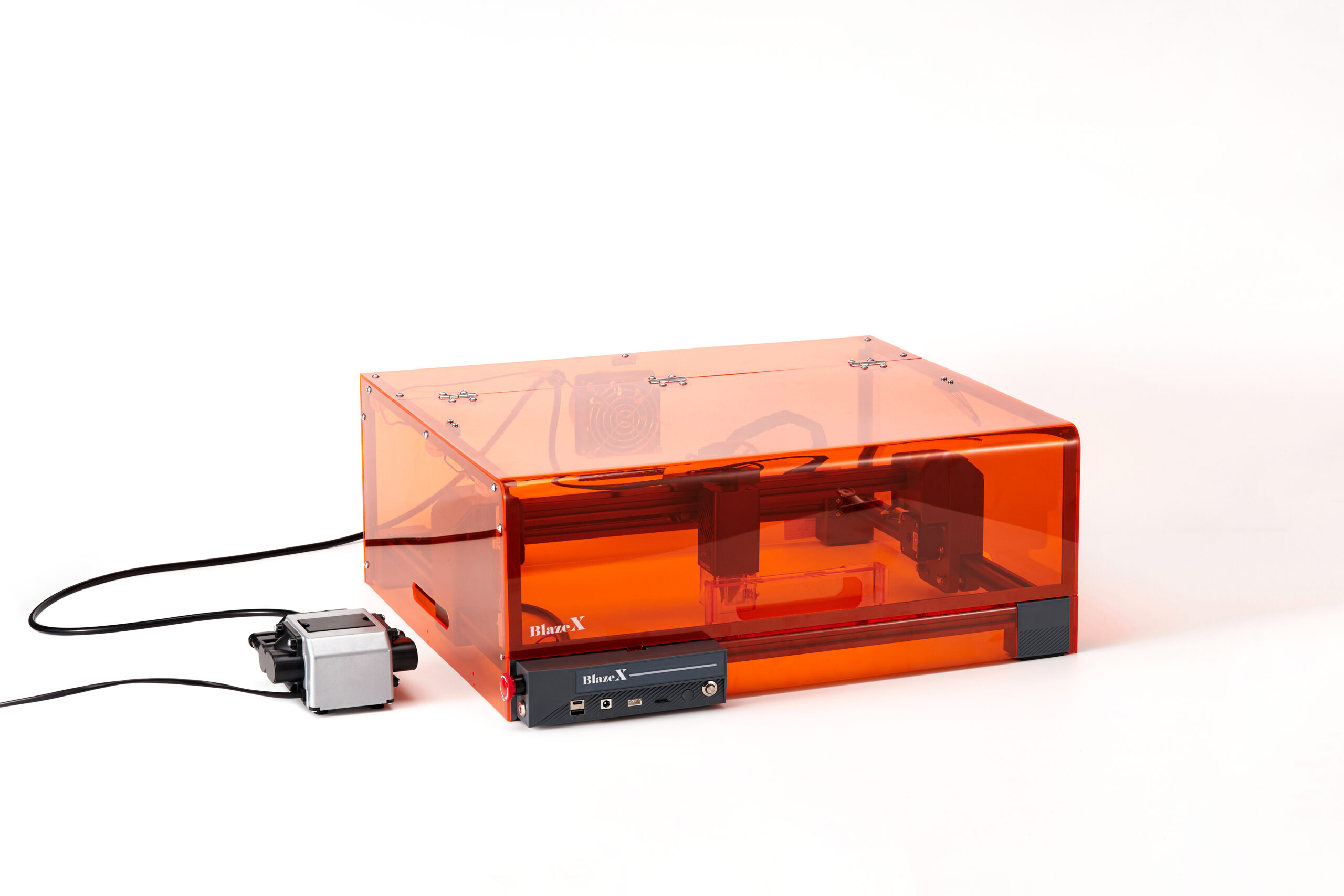

Products Brand/Model: BlazeX M2 Pro Laser Engraving Machine

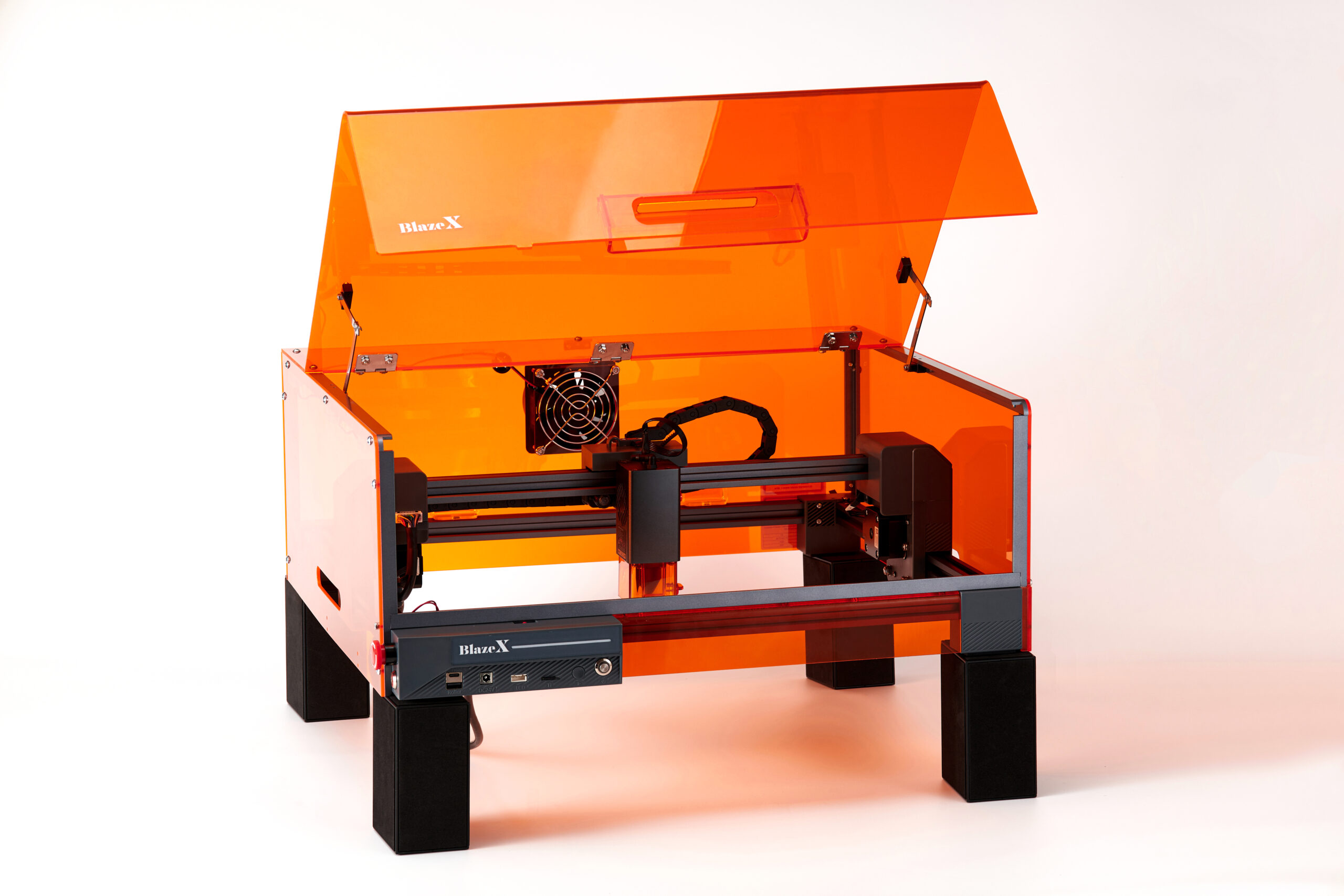

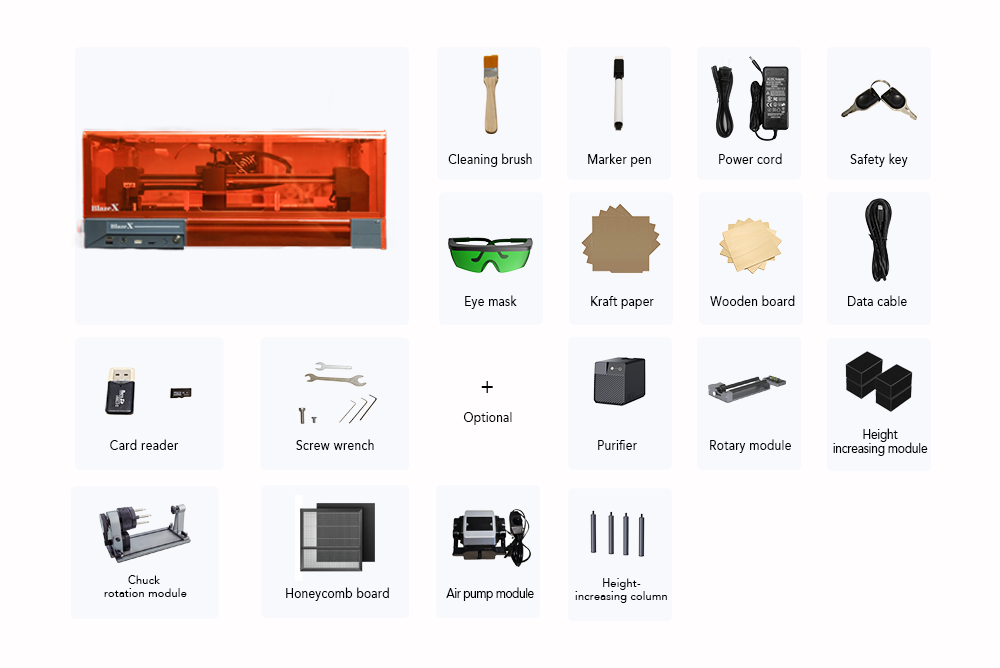

Optional Accessories: Honeycomb Panel, Heightening Column, Rotary Fixture Clamp, Air Purifier, Air Pump.

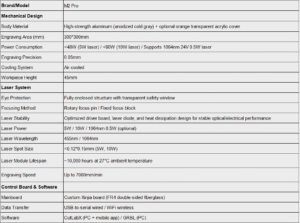

| Mechanical Design | |
|---|---|

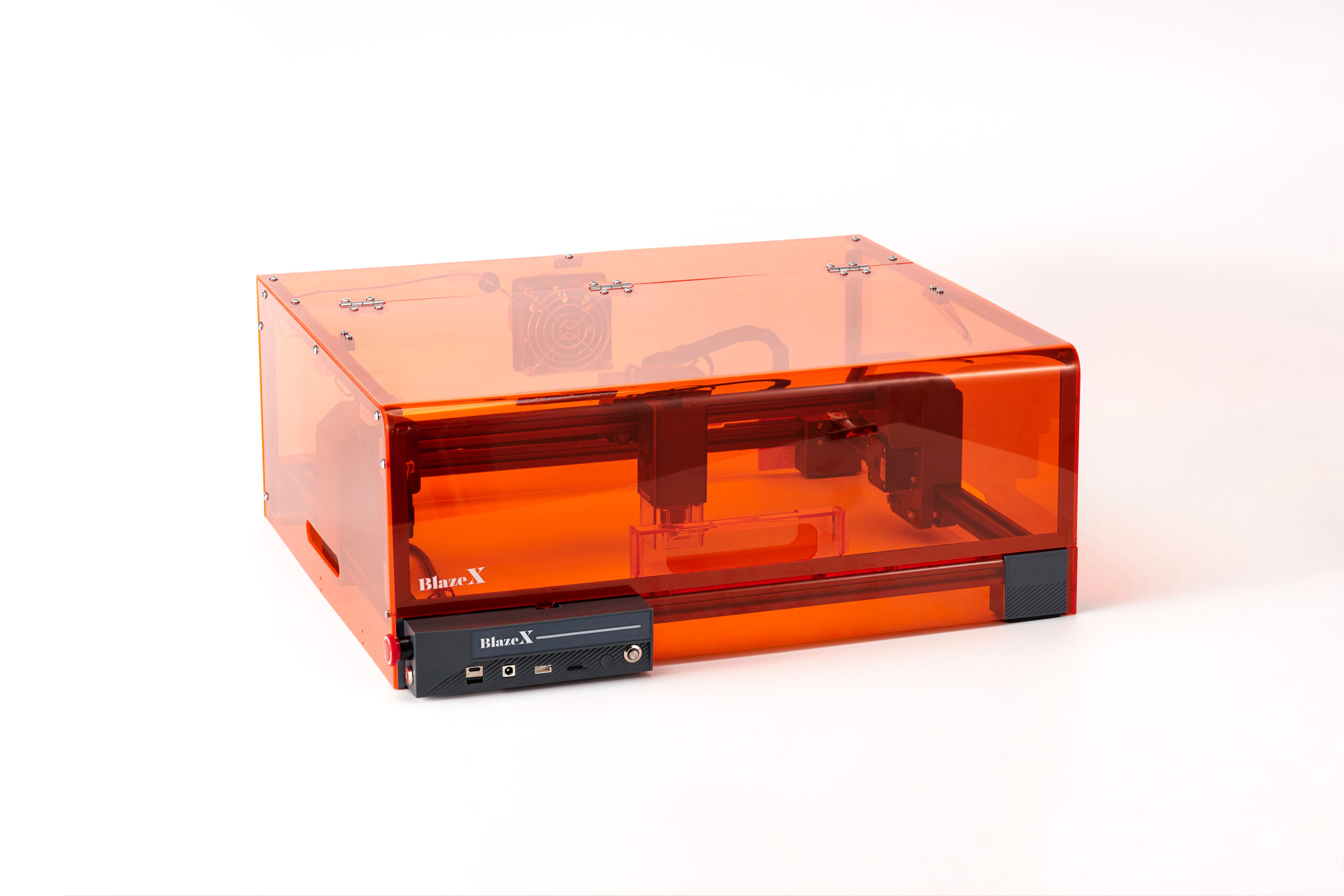

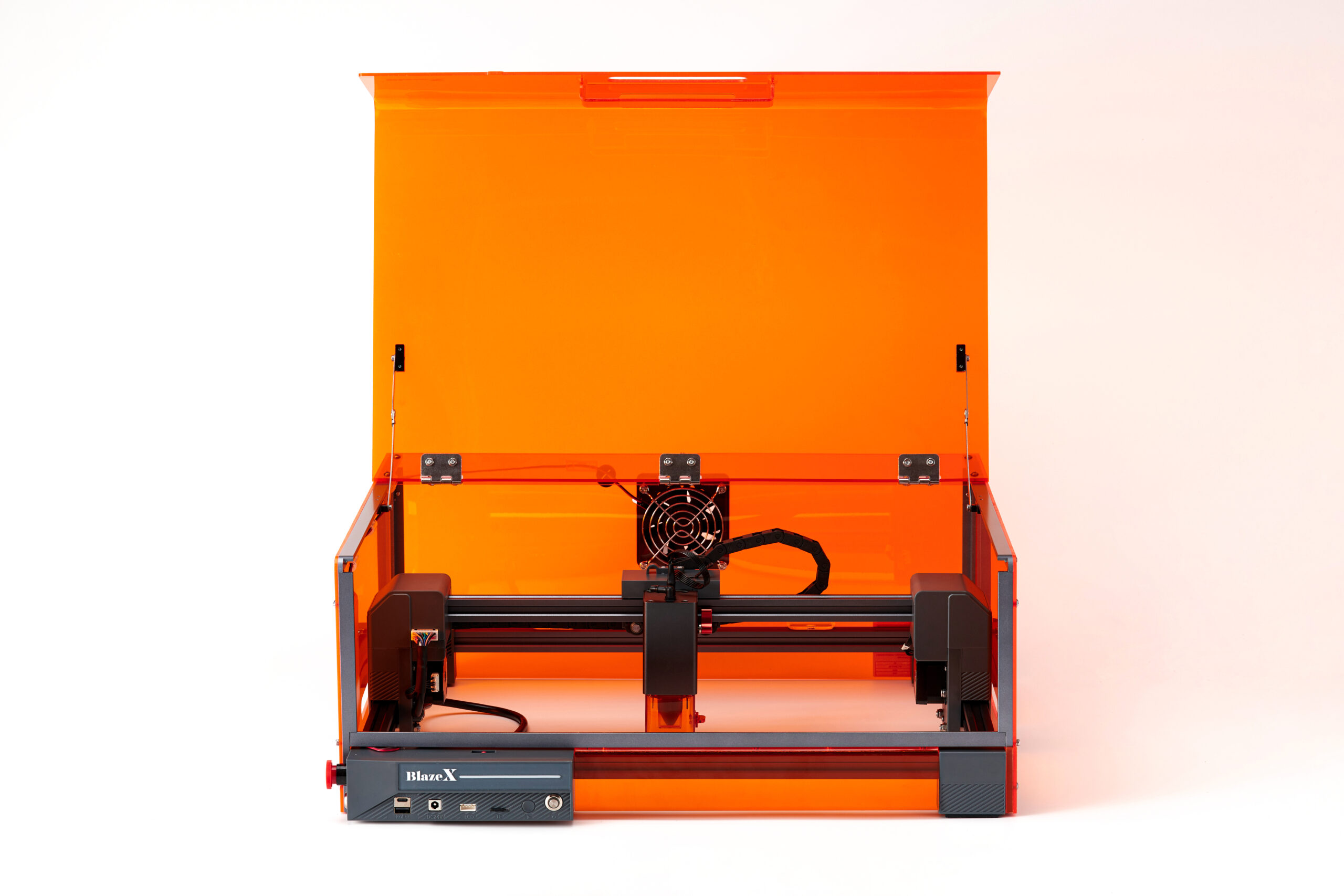

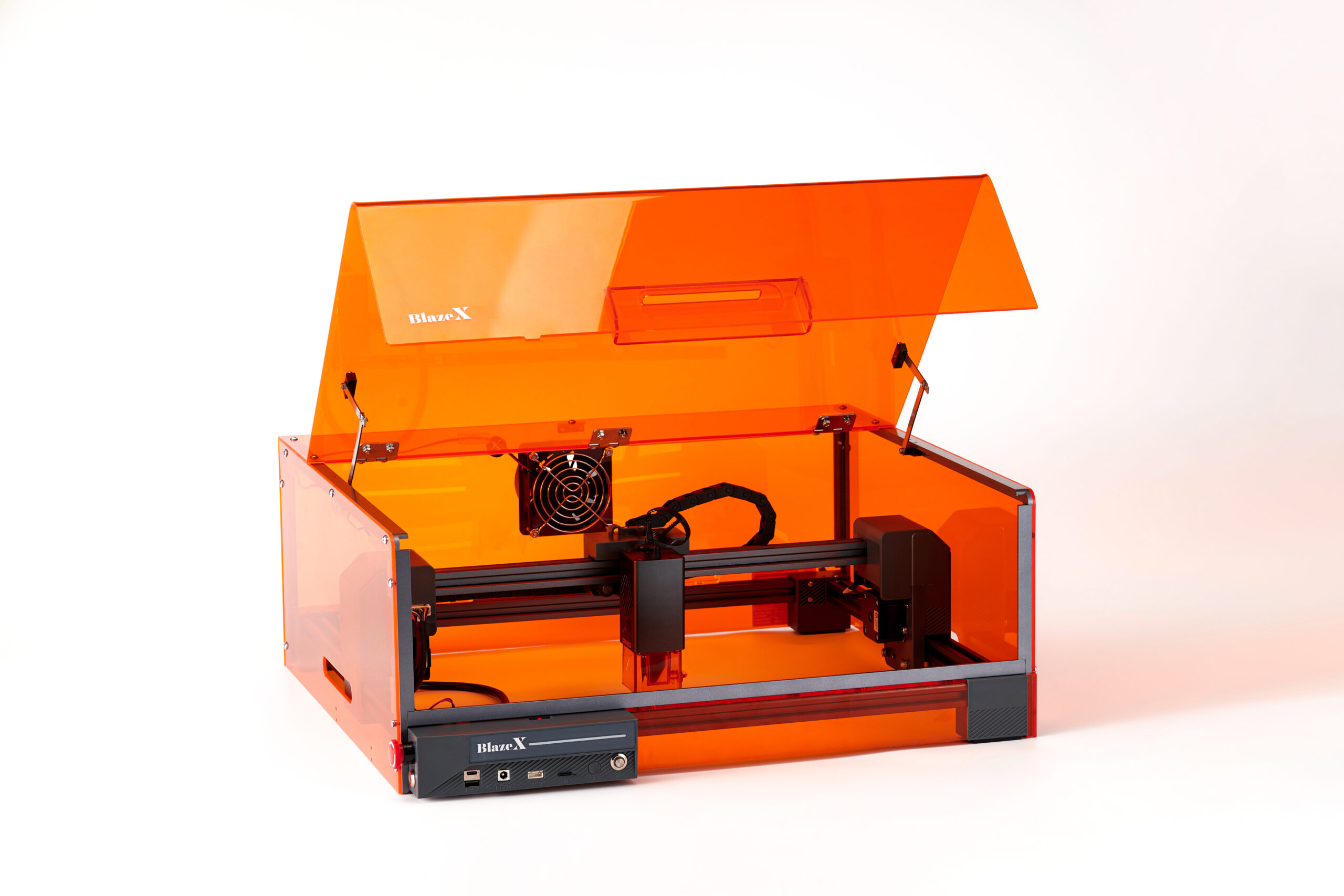

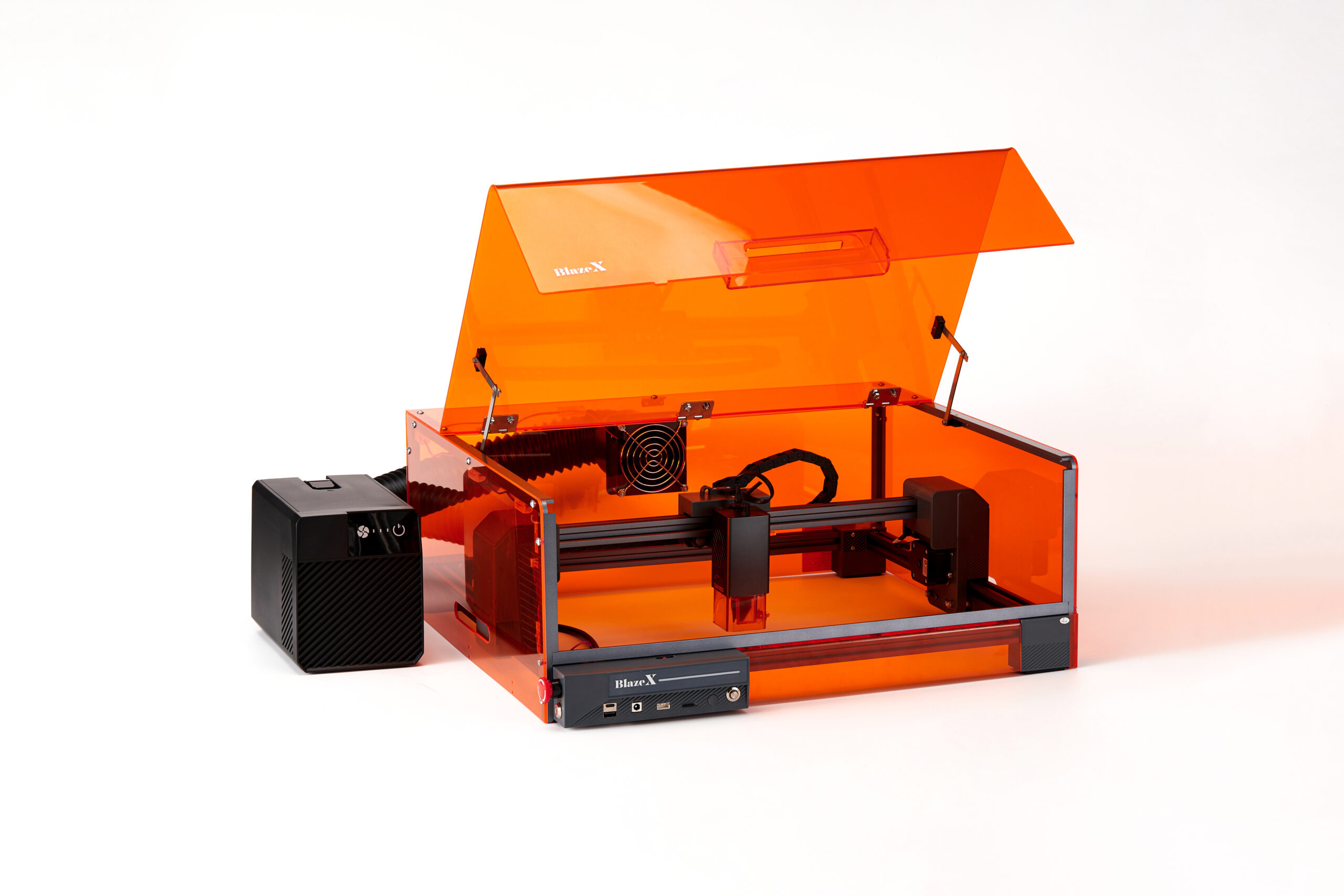

| Body Material | High-strength aluminum (anodized cold gray) + optional orange transparent acrylic cover |

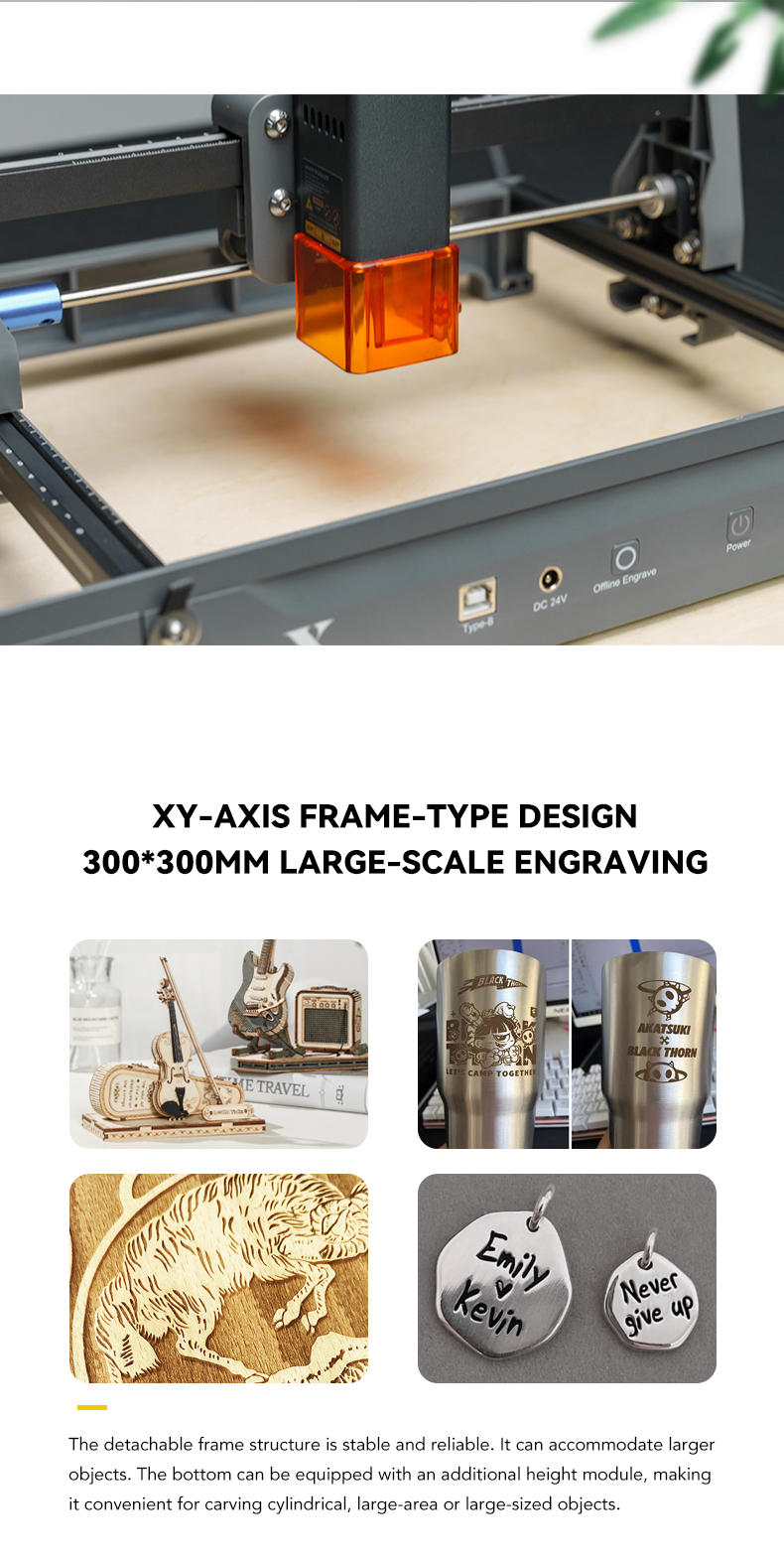

| Engraving Area | 300*300mm |
| Power Consumption | <48W (5W Blue Laser)/ <60W (10W Blue Laser)/ Supports 1064nm 24V 0.5W Red Laser |
| Engraving Precision | 0.05mm |
| Cooling System | Air-cooled |
| Working Height | 45 mm |
| Laser System | |
|---|---|

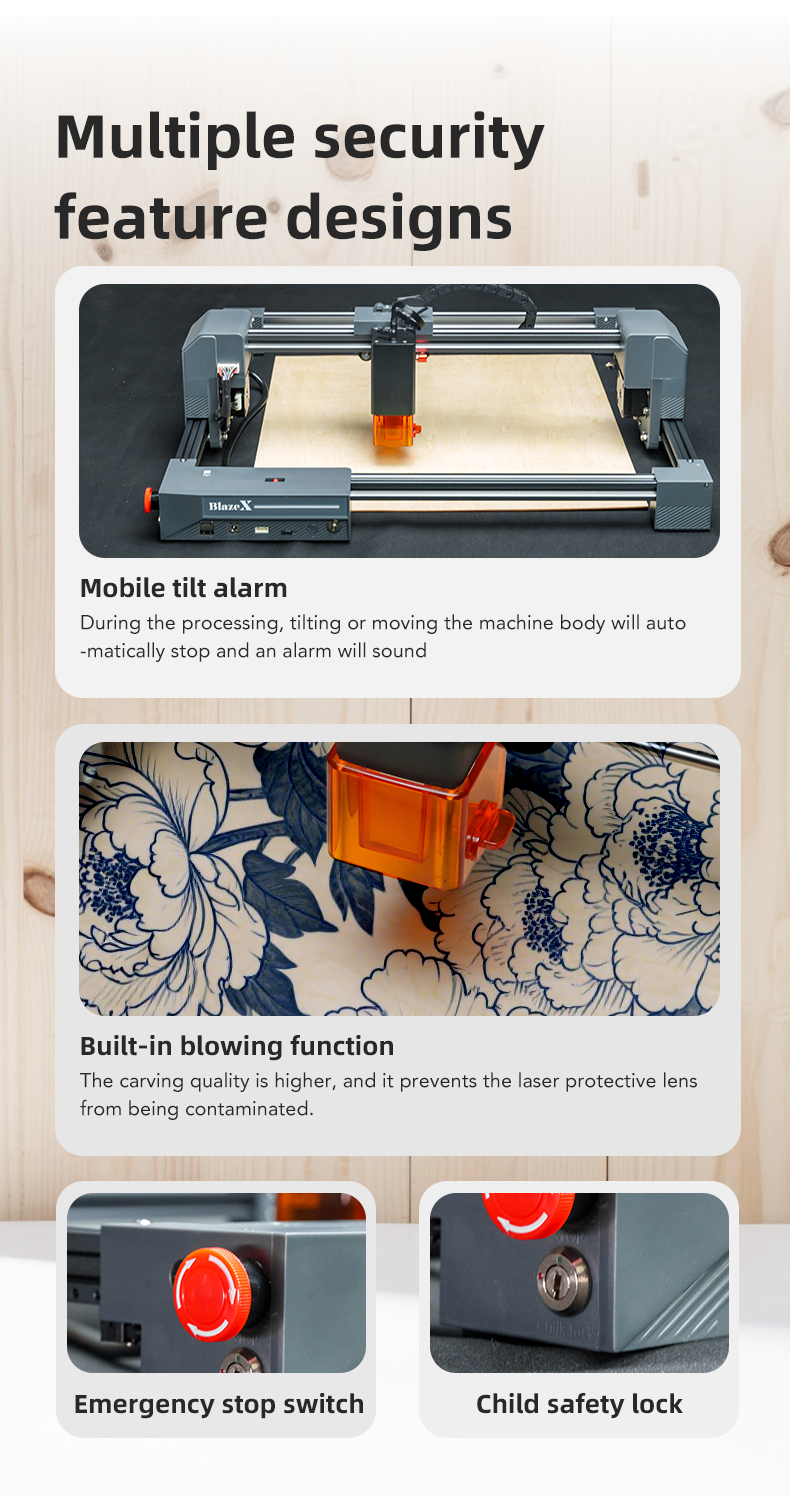

| Eye Protection | Fully enclosed structure with transparent safety window |
| Focusing Method | Rotary focus pin / Fixed focus block |
| Laser Stability | Optimized driver board / laser diode and heat dissipation design for stable optical/electrical performance |

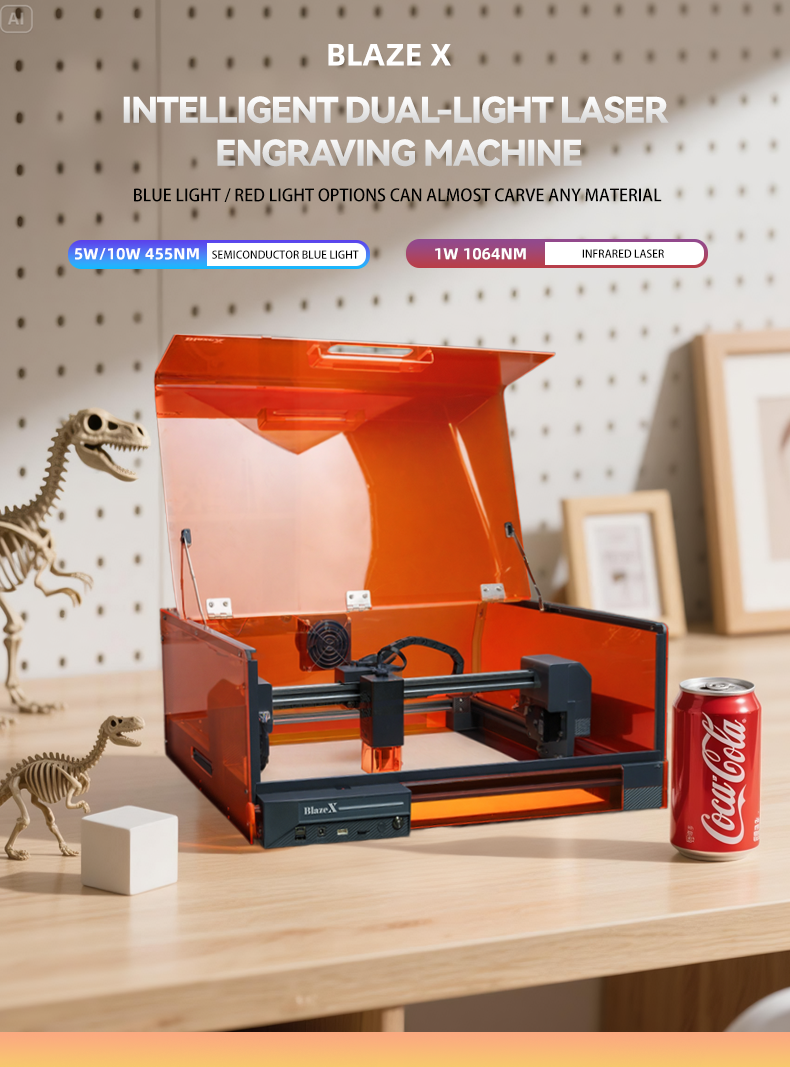

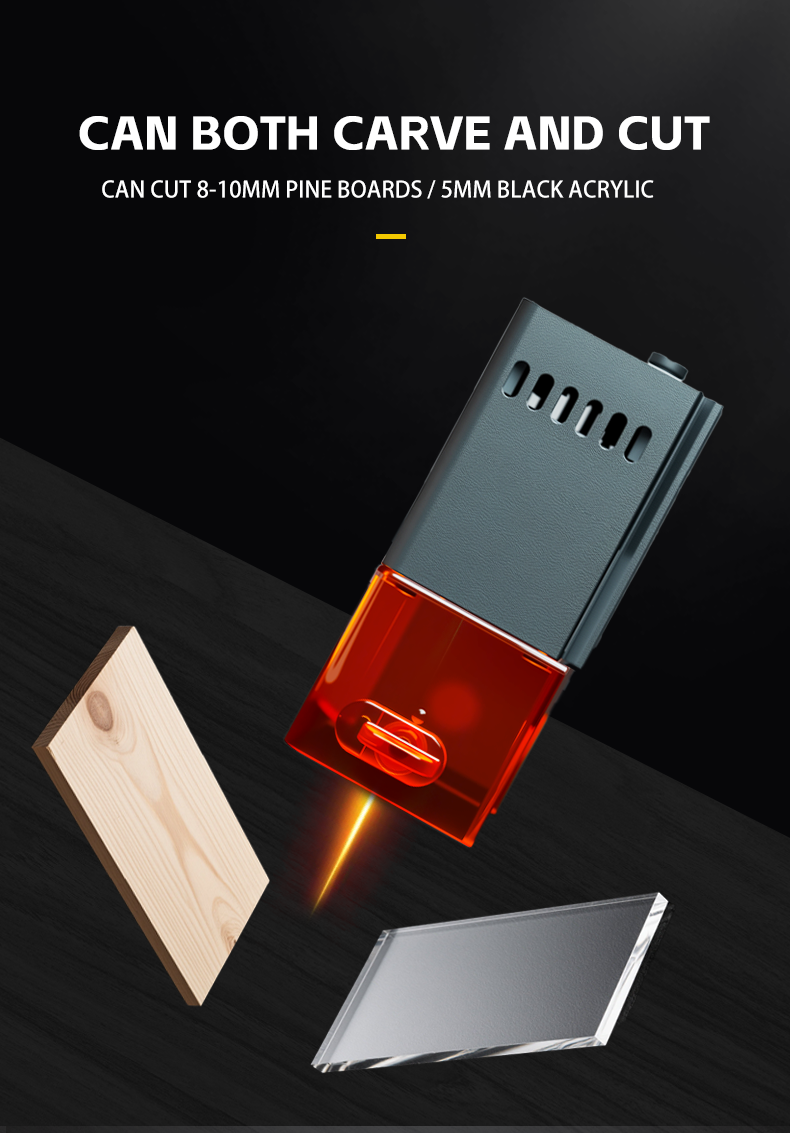

| Laser Power | 3W / 5W / 10W / 1064nm 0.5W (optional) |
| Laser Wavelength | 455nm / 1064nm (optional) |
| Laser Spot Size | <0.12*0.15mm (5W / 10W) |
| Laser Module Lifespan | About 10000 hours at 27°C ambient temperature |
| Engraving Speed | Up to 7000mm/min |
| Control Board & Software | |
|---|---|
| Mainboard | Custom BlazeX board (FR4 double-sided fiberglass) |
| Data Transfer | USB-to-serial wired / WiFi wireless |
| Software | CutLabX (PC + mobile app) / GRBL (PC) |
| Supported Formats | CutLabX: JPEG/BMP/JPG/GIF/PLT/PNG/CUTLABX (image) / DXF/PLT/HPGL (vector)；GRBL: NC/BMP/JPG/PNG/DXF |
| OS Compatibility | CutLabX: Windows/macOS/Android/iOS；GRBL: Windows/macOS (Note: LaserGRBL unsupported on macOS) |
