$579.00
Products Brand/Model: BlazeX M2 Pro Laser Engraving Machine
Optional Accessories: Honeycomb Panel, Heightening Column, Rotary Fixture Clamp, Air Purifier, Air Pump.
| Mechanical Design | |
|---|---|
| Body Material | High-strength aluminum (anodized cold gray) + optional orange transparent acrylic cover |
| Engraving Area | 300*300mm |
| Power Consumption | <60W (10W Blue Laser)/ Supports 1064nm 24V 0.5W Red Laser |
| Engraving Precision | 0.05mm |
| Cooling System | Air-cooled |
| Working Height | 45 mm |
| Laser System | |
|---|---|
| Eye Protection | Fully enclosed structure with transparent safety window |
| Focusing Method | Rotary focus pin / Fixed focus block |
| Laser Stability | Optimized driver board / laser diode and heat dissipation design for stable optical/electrical performance |
| Laser Power | 10W / 1064nm 0.5W (optional) |
| Laser Wavelength | 455nm / 1064nm (optional) |
| Laser Spot Size | <0.12*0.15mm (10W) |
| Laser Module Lifespan | About 10000 hours at 27°C ambient temperature |

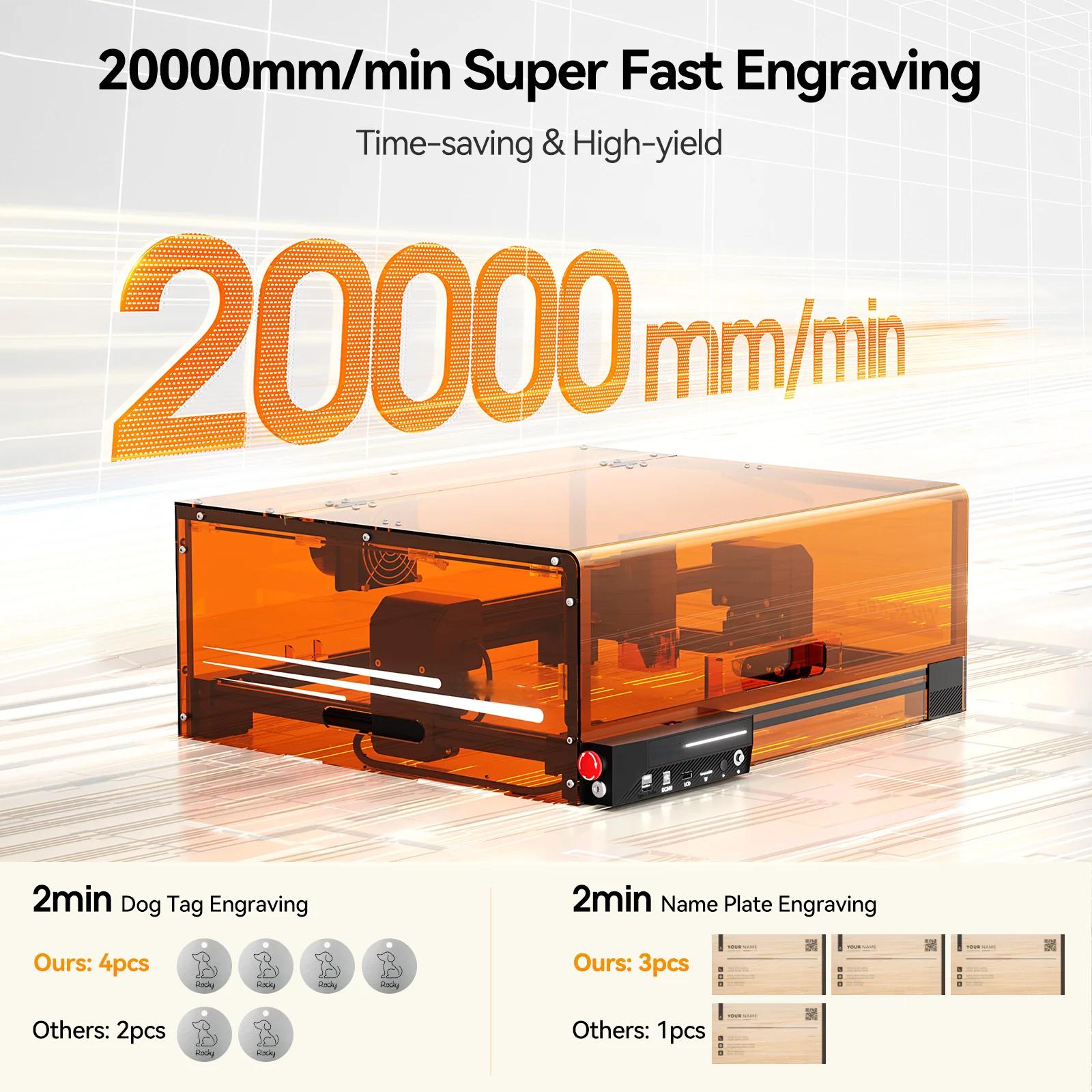

| Engraving Speed | Up to 20000mm/min |
| Control Board & Software | |
|---|---|
| Mainboard | Custom BlazeX board (FR4 double-sided fiberglass) |

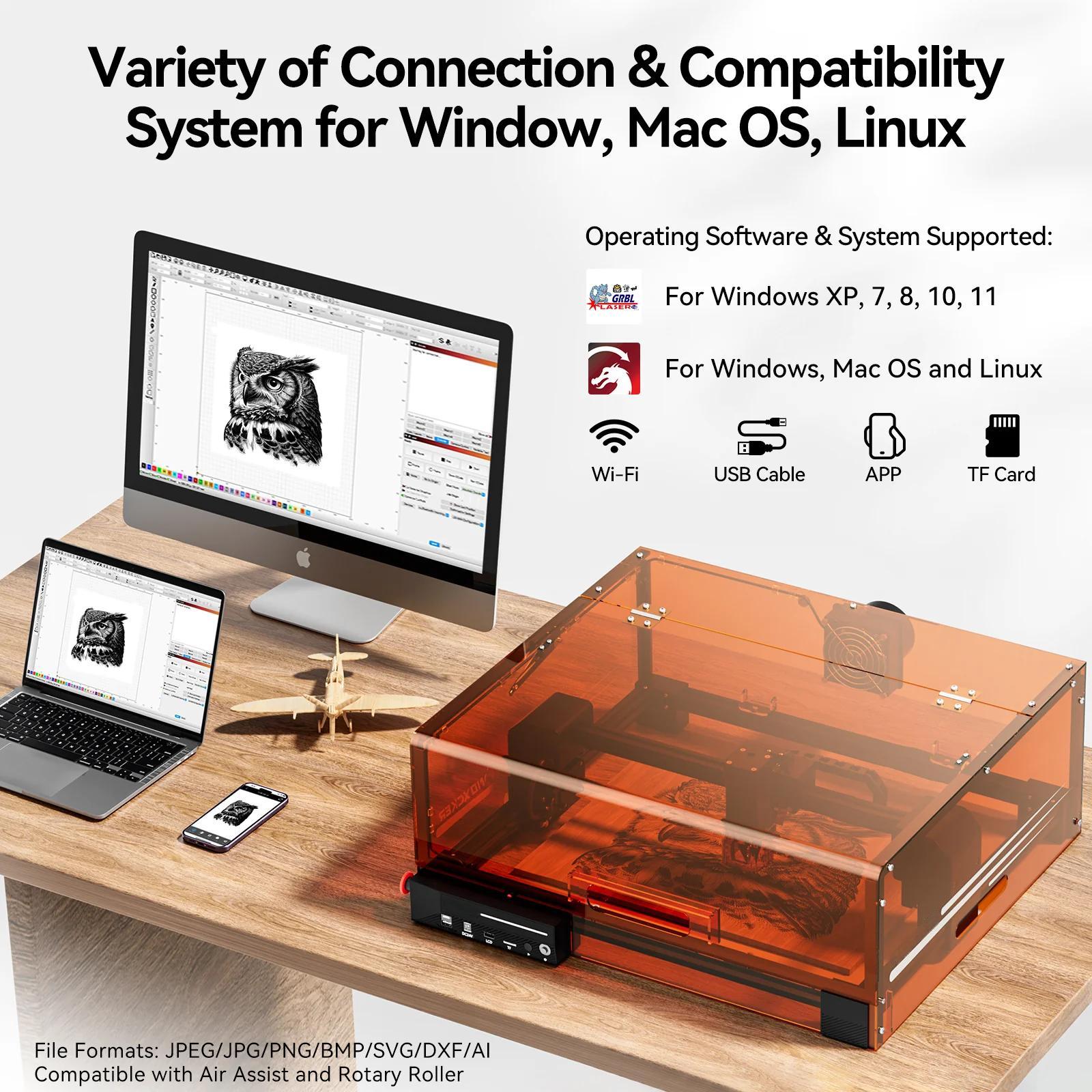

| Data Transfer | USB-to-serial wired / WiFi wireless |
| Software | CutLabX (PC + mobile app) / GRBL (PC) |
| Supported Formats | CutLabX: JPEG/BMP/JPG/GIF/PLT/PNG/CUTLABX (image) / DXF/PLT/HPGL (vector)；GRBL: NC/BMP/JPG/PNG/DXF |
| OS Compatibility | CutLabX: Windows/macOS/Android/iOS；GRBL: Windows/macOS (Note: LaserGRBL unsupported on macOS) |
